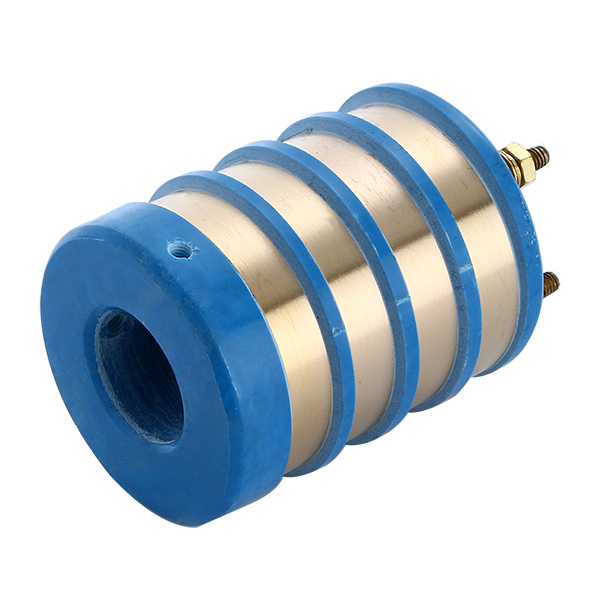

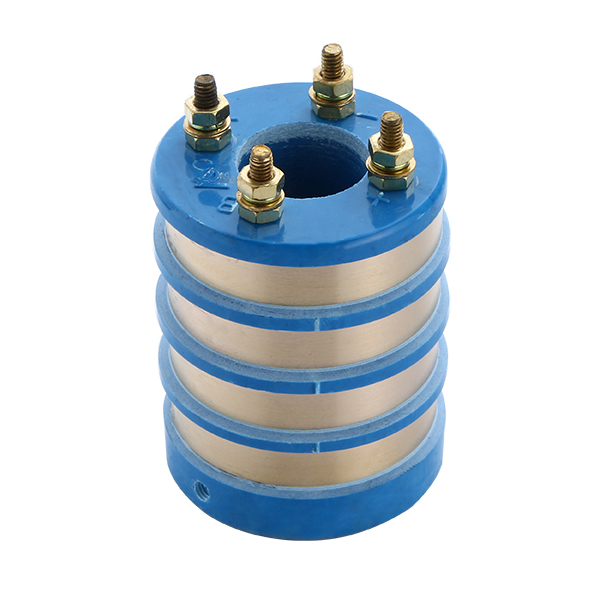

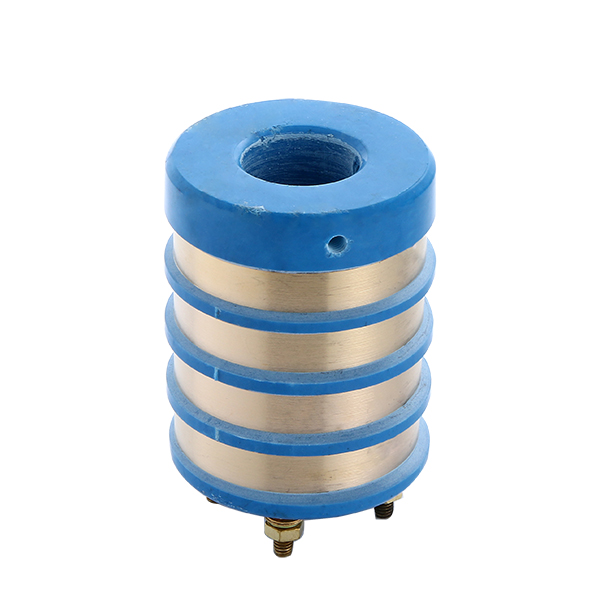

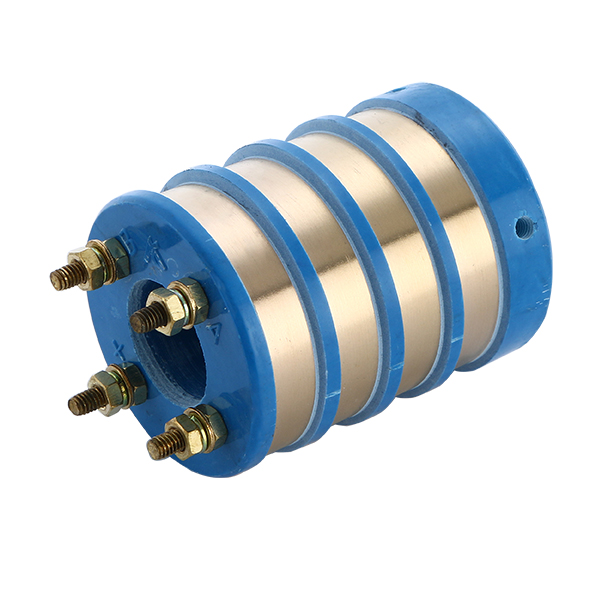

产品特点
优良的防电弧保护,提高抗电磁干扰性能及使用寿命；优异的高温性和热氧化安定性，可承受很高温度的冲击；良好的抗磨损性和油膜润滑性，有效改善金属的接触表面；金属防锈、防腐保护，与大部分塑胶和弹胶体良好相容。
应用领域
集电环广泛用于尖端军事领域,近年来随着我国经济建设的不断发展，民用领域也开始广泛使用此类产品，目前工业自动化系统控制、
安防系统的云台等领域已广泛使用，以下则是集电环部分适用领域：
工业领域：
主要应用于测试及测量系统（精密旋转工作台、离心机、分析仪等）、机器人、汽车制造设备、自动化设备、工程机械设备等。
船舶领域：
主要应用于推进器等。
电子领域：
主要用于半导体加工设备。
医疗器械领域：
主要用于螺旋CT机。
娱乐设施领域：
主要用于旋转木马、旋转摩天轮等。

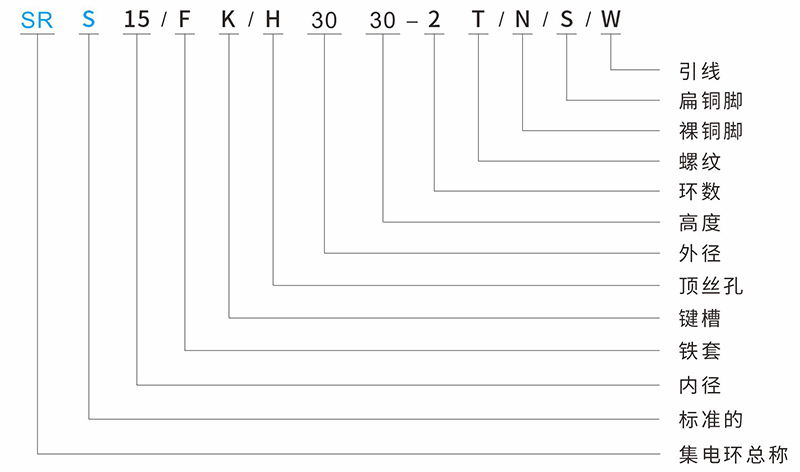

型号说明:
型号:
| Model | d | D | H | L2 | L1 | M | F | b | e | a | C | M1 |
| SRS17K5055-4T | 17 | 50 | 55 | 8 | 13 | M4 | 4 | / | / | 5 | 20 | / |
| SRS17H5058-4T | 17 | 50 | 58 | 7 | 13 | M4 | 10 | / | / | / | / | 2-M5 |
| SRS175064-4N | 17 | 50 | 64 | 9 | 16 | 5 | 2 | / | / | / | / | / |
| SRS17KH6075-4T | 17 | 60 | 75 | 9 | 16 | M4 | 16 | / | / | 6 | 20 | 2-M6 |
| SRS18KH5060-4T | 18 | 50 | 60 | 7 | 13 | M4 | 10 | / | / | 6 | 21 | 2-M5 |
| SRS20K5056-4T | 20 | 50 | 56 | 7 | 12.5 | M4 | 10 | / | / | 6 | 23 | / |
| SRS20H5059-4T | 20 | 50 | 59 | 7 | 12.5 | M4 | 10 | / | / | / | / | 2-M5 |
| SRS20H5058-4N | 20 | 54 | 58 | 3.7/8.6 | / | 4/3 | / | / | / | / | / | 2-M5 |
| SRS20H5573-4T | 20 | 55 | 73 | 10 | 14 | M4 | 15 | / | / | / | / | 2-M6 |
| SRS20KH6066-4T | 20 | 60 | 66 | 9 | 16 | M4 | 6 | / | / | 8 | 24 | 4-M4 |
| SRS206565-4N | 20 | 65 | 65 | 10 | 15 | 5 | 5 | / | / | / | / | / |
| SRS206070-4T | 20 | 60 | 70 | 9.5 | 17.5 | M4 | 4 | / | / | / | / | 环与环之间丝孔 |
| SRS25H5059-4T | 25 | 50 | 59 | 7 | 12.5 | M4 | 10 | / | / | / | / | 2-M5 |
| SRS25H5458-4T | 25 | 54 | 58 | 8.6/3.7 | / | M4/M3 | / | / | / | / | / | 2-M5 |
| SRS25H5474-4T | 25 | 54 | 74 | 10 | 14 | M4 | 15 | / | / | / | / | 2-M6 |
| SRS25K6075-4T | 25 | 60 | 75 | 9 | 16 | M4 | 14 | / | / | 8 | 29 | / |
| SRS2565102-4T | 25 | 65 | 102 | 8 | 13 | M4 | 21 | / | / | / | / | / |
| SRS25H6775-4T | 25 | 67 | 75 | 10 | 15 | M4 | 16 | / | / | / | / | 2-M6 |
| SRS25K7090-4S | 25 | 70 | 90 | 9 | 16 | / | 21 | 8 | 2 | 8 | 29 | / |
| SRS25K7090-4T | 25 | 70 | 96 | 10 | 21.5 | M4 | 12 | / | / | 8 | 29 | 2-M8 |
| SRS26K7994-4T | 26 | 79 | 94 | 12 | 22 | M5 | 6 | / | / | 8 | 31.8 | / |
| SRS28H6066-4T | 28 | 60 | 66 | 9 | 16 | M4 | 6 | / | / | / | / | 4-M4 |
| SRS30H5574-4T | 30 | 55 | 74 | 10 | 14 | M4 | 15 | / | / | / | / | 2-M6 |
| SRS306066-4T | 30 | 60 | 66 | 9 | 16 | M4 | 5 | / | / | / | / | / |
| SRS30H6075-4T | 30 | 60 | 75 | 9 | 16 | M4 | 14 | / | / | / | / | 2-M8 |
| SRS30K8080-4N | 30 | 80 | 80 | 11 | 18 | 6 | 5 | / | / | 8 | 33.5 | / |
| SRS326050-4N | 32 | 60 | 50 | 8 | 12 | 4 | 3 | / | / | / | / | / |
| SRS32H6066-4T | 32 | 60 | 66 | 9 | 16 | M4 | 5 | / | / | / | / | 4-M4 |
| SRS32H6075-4T | 32 | 60 | 75 | 9 | 16 | M4 | 14 | / | / | / | / | 2-M8 |
| SRS326575-4T | 32 | 65 | 75 | 10 | 15 | M4 | 15 | / | / | / | / | / |
| SRS35H6080-4T | 35 | 60 | 80 | 10 | 16 | M4 | 16 | / | / | / | / | 2-M8 |
| SRS357070-4S | 35 | 70 | 70 | 9 | 16 | / | 6 | 8 | 2 | 8 | 39 | / |
| SRS358080-4T | 35 | 80 | 80 | 11 | 20 | M4 | 5 | / | / | / | / | / |
| SRS359048-4T | 35 | 90 | 48 | 8 | 11 | M4 | 4 | / | / | / | / | / |
| SRS408080-4T | 40 | 80 | 80 | 11.5 | 20 | M4 | 5 | / | / | / | / | / |
| SRS428076-4N | 42 | 80 | 76 | 11.5 | 20 | 4 | 6 | / | / | / | / | / |
| SRS4512956-4T | 45 | 129 | 56 | 8 | 13 | M4 | 4 | / | / | / | / | / |
| SRS45K8090-4S | 45 | 80 | 90 | 12 | 21 | / | 7 | 10 | 2 | 10 | 49 | / |
| SRS4513067-4N | 45 | 130 | 67 | 8 | 12 | 4 | 5 | / | / | / | / | / |
| SRS45K145195-4S | 45 | 145 | 195 | 17 | 72 | / | 27 | 15 | 2 | 12 | 49 | / |
| SRS48K103120-4T | 48 | 103 | 120 | 15 | 25 | M6 | 10 | / | / | 12 | 6 | / |
| SRS508090-4S | 50 | 80 | 90 | 2 | 21 | / | 7 | 10 | 2 | / | / | / |
| SRS5010075-4T | 50 | 100 | 75 | 10 | 15 | M4 | 5 | / | / | / | / | / |
| SRS50100135-4S | 50 | 130 | 135 | 15 | 33 | / | 10 | 20 | 3 | / | / | / |
| SRS50140131-4N | 50 | 140 | 131 | 16 | 29 | 8 | 15 | / | / | / | / | / |
| SRS55K100118-4S | 55 | 100 | 118 | 13.5/9 | 27 | / | 12 | 10 | 2 | 8 | 59 | / |
| SRS55K120110-4S | 55 | 120 | 110 | 13 | 27 | / | 9 | 14 | 2 | 12 | 5 | / |
| SRS60K9048-4T | 60 | 90 | 48 | 8 | 11 | M4 | 4 | / | / | 8 | 64 | / |
| SRS60115130-4S | 60 | 115 | 130 | 15 | 30 | / | 20 | 10 | 2 | / | / | / |
| SRS60118137-4T | 60 | 118 | 137 | 8 | 13 | M4 | 5 | / | / | / | / | / |
| SRS60K120110-4T/S | 60 | 120 | 110 | 13 | 27 | M8 | 9 | 14 | 2 | 12 | 4 | / |
| SRS60K120138-4T/S | 60 | 120 | 138 | 14.5 | 35 | M8 | 10 | 15 | 3 | 14 | 65 | / |
| SRS60H130107-4S | 60 | 130 | 107 | 10 | 15 | M4 | 11 | / | / | / | / | 2-M8 |
| SRS60160165-4S | 60 | 160 | 165 | 20 | 40 | / | 22 | 20 | 3 | / | / | / |
| SRS60K160164-4S | 60 | 160 | 164 | 22 | 40 | / | 12 | 20 | 3 | 12 | 4 | |
| SRS64K105107-4S | 64 | 105 | 107 | 15 | 26 | / | 7 | 12 | 2 | 12 | 69 | / |
| SRS65120110-4T | 65 | 120 | 110 | 13 | 27 | M8 | 9 | / | / | / | / | / |
| SRS6513037-4T | 65 | 130 | 67 | 8 | 12 | M4 | 5 | / | / | / | / | / |
| SRS65162205-4S | 65 | 162 | 205 | 18 | 40 | / | / | 20 | 3 | / | / | / |
| SRS65164165-4S | 65 | 164 | 165 | 18 | 40 | / | 22 | 20 | 3 | / | / | / |
| SRS66185205-4S | 66 | 185 | 205 | 24 | 52 | / | 14 | 20 | 3 | / | / | / |
| SRS68188205-4S | 65 | 188 | 205 | 24 | 52 | / | 20 | 3 | / | / | / | / |
| SRS70H12078-4T | 70 | 120 | 78 | 10 | 15 | M4 | 15 | / | / | / | / | 2-M8 |
| SRS7013068-4N | 70 | 130 | 68 | 7.8 | 12 | 4 | / | / | / | / | / | / |
| SRS70186205-4S | 70 | 186 | 205 | 24 | 52 | / | 20 | 3 | / | / | / | |
| SRS758076-4N | 75 | 80 | 76 | 11 | 20 | 4 | 6 | / | / | / | / | / |
| SRS75120110-4S | 75 | 120 | 110 | 13 | 27 | / | 9 | 14 | 2 | / | / | / |
| SRS75K140130-4S | 75 | 140 | 130 | 18 | 32 | / | 10 | 15 | 3 | 12 | 79 | / |
| SRS75K160100-4T | 75 | 160 | 100 | 12 | 22 | M6 | 7 | / | / | 12 | 79 | / |
| SRS78.5F12975-4N | 78.5 | 129 | 75 | 铁芯8 | 12.5 | 12 | 4 | / | / | / | / | / |
| SRS80H13067-4T | 80 | 130 | 67 | 9 | 12 | M4 | 5.5 | / | / | / | / | 2-M8 |
| SRS8013089-4N | 80 | 130 | 89 | 8 | 18 | 4 | 8 | / | / | / | / | / |
| SRS80K132100-4T | 80 | 132 | 100 | 8 | 18 | M4 | 9 | / | / | 12 | 84 | / |
| SRS80K140130-4S | 80 | 140 | 130 | 17.5 | 32 | / | 9 | 15 | 3 | 12 | 84 | / |
| SRS80K188205-4T | 80 | 188 | 205 | 24 | 52 | M12 | 14 | 20 | 3 | 12 | 4 | / |
| SRS90K135166-4S | 90 | 135 | 166 | 18 | 37 | / | 14 | 15 | 3 | 16 | 96 | / |
| SRS90K160202-4S | 90 | 160 | 202 | 25 | 50 | / | 12 | 20 | 3 | 18 | 5 | / |
| SRS90K186205-4S | 90 | 186 | 205 | 24 | 52 | / | 4 | 20 | 2 | 12 | 4 | / |
| SRS600685245-4N | 600 | 685 | 245 | 28 | 55 | 12 | 30 | / | / | / | / | / |
技术规格参数：
| 机械技术指标 | 电气技术指标 | ||||
| 参数 | 数值 | 参数 | 数值 | ||
| 工作寿命 | 1000万转参考值（按工作情况而定） | 功率 | 信号 | ||
| 额定转速 | 150转/分钟 | 额定电压 | 0~240VAC/VDC | 0~240VAC/VDC | |
| 工作温度 | -30℃~-80℃ | 绝缘电阻 | ≥300MΩ/300VDC | ≥300MΩ/300VDC | |
| 工作湿度 | 0~85%RH | 导线规格 | 参考选型规格 | 参考选型规格 | |
| 接触材料 | 金/金 | 导线长度 | 标准长度300mm（可根据定制） | ||
| 壳体材料 | 工程塑料 | 绝缘强度 | 300VAC@50Hz，60S | ||
| 转动扭矩 | 0.05N.m+0.02N.m/6路 | 动态电阻变化值 | <0.01Ω | ||
| 防护等级 | IP51 | ||||

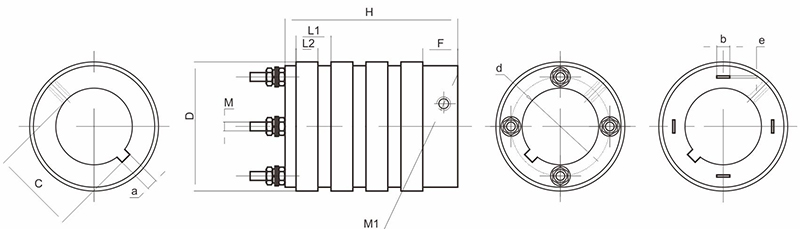

图纸:

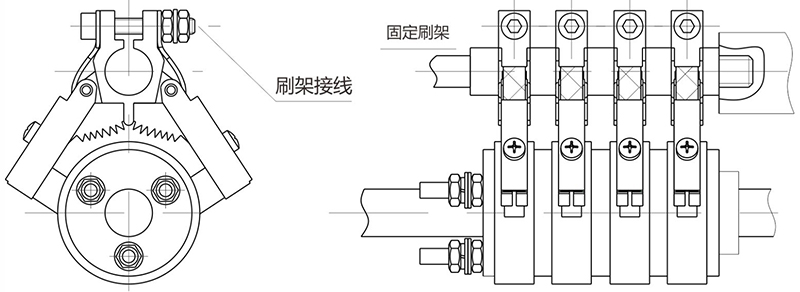

安装
